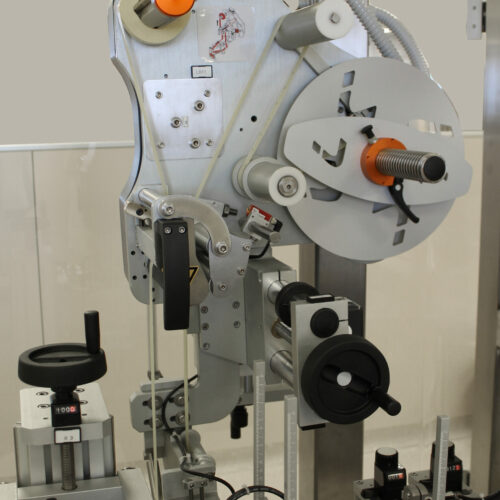

It is the automatic labelling system for the application of two “Tamper Evident” seal labels on opposite sides of pharmaceutical cartons. Labels can be applied in parallel or alternate positions.
Standard features
- Double LABELX 140 ES labelling unit
- Double horizontal and vertical micrometric adjustment unit with numeric position indicators
- Loading flat belt for product accumulation (min load management).
- Double side belts to separate the products at max speed of 250 pcs/min
- Double toothed belts to move the products in the printing and labelig area
- Product stabilising device with brushless motorisation
- Double 90° label folding device with micrometric adjustments
- Automatic speed synchronisation
- MASTER support structure made of painted steel (stainless steel on request)
- Total protections in transparent polycarbonate
- Centralised electronics with Touch Screen operator panel with access for remote assistance
- PLC unit with storage of operating parameters
- Ind. 4.0 ready
Optional accessories
- Photocell for transparent labels
- Check presence of the labels onto the products
- Thermal inkjet printers (TIJ)
- Camera system
- Automatic ejection system for defective products
- IQ/OQ documentation
